    CHECKSTEEL

    Structural steel design

    AS 4100, AS/NZS 5100.6 and NZS 3404 steel design, simplified.

    CHECKSTEEL is Revolutio's structural steel design solution for steel members under bending, torsion, shear, bearing, compression, tension, and combined actions.

    View PricingView PDFView screenshots

    Free 2-week trial available

    Lifetime licence option available

    Overview

    Key information

    • Capacity checks for steel members subject to major structural actions and combinations.
    • Custom section builder for hot-rolled, welded, cold-formed, and stress-relieved sections.
    • Automated bending and compression buckling curve generation.
    • Section penetration support and a historical section library with over 2,000 sections.
    • Used by more than 400 companies and over 4,000 users worldwide.

    Capabilities

    Features

    Custom sections

    • Custom section builder calculates properties to AS 4100, AS 5100.6, AS/NZS 3679.1, AS/NZS 3679.2, and AS/NZS 1163.
    • Automated bending and compression buckling curve generation.
    • Section penetration support.
    • Supports symmetric I-beams, taper flange beams, monosymmetric I-beams, tees, parallel flange channels, round bars, RHS, SHS, and CHS.
    • Supports hot-rolled, heavily welded, lightly welded, cold-formed, and stress-relieved workflows where applicable.

    Historical section library

    • Contains over 2,000 standard steel sections in metric and imperial units produced across Australia and New Zealand during the past 60 years.
    • Includes BHP/AI&S hot-rolled sections, BHP/AI&S cold-formed sections, OneSteel TubeLine, OneSteel DuraGal, Smorgon DualGrade, and more.
    • References to source material are included.

    Gallery

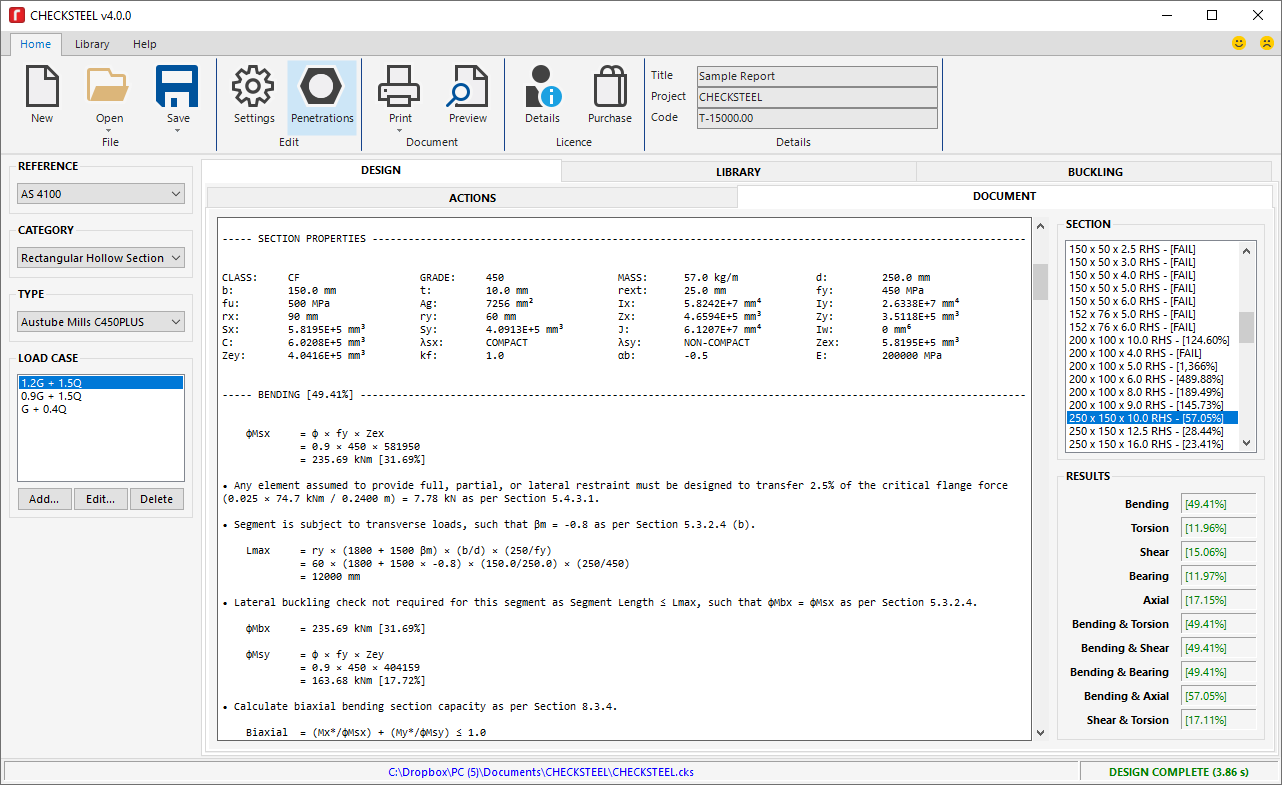

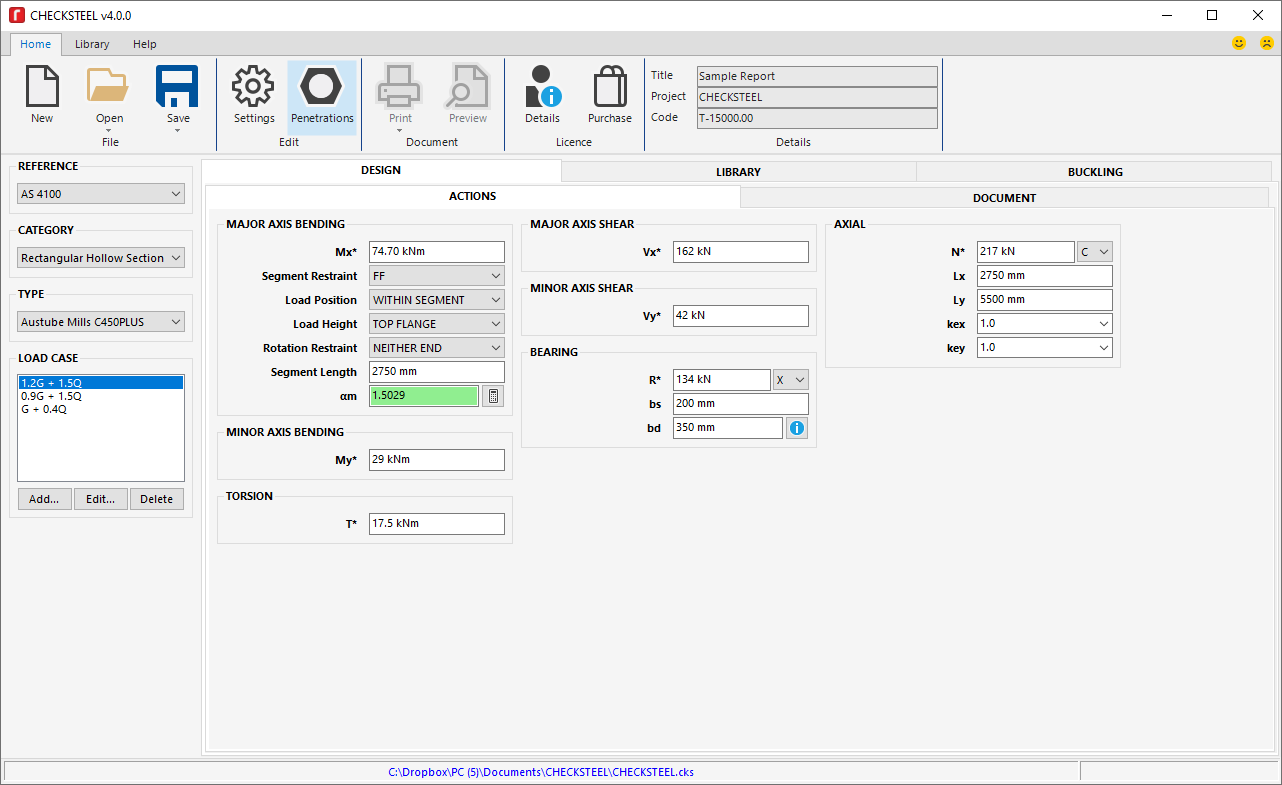

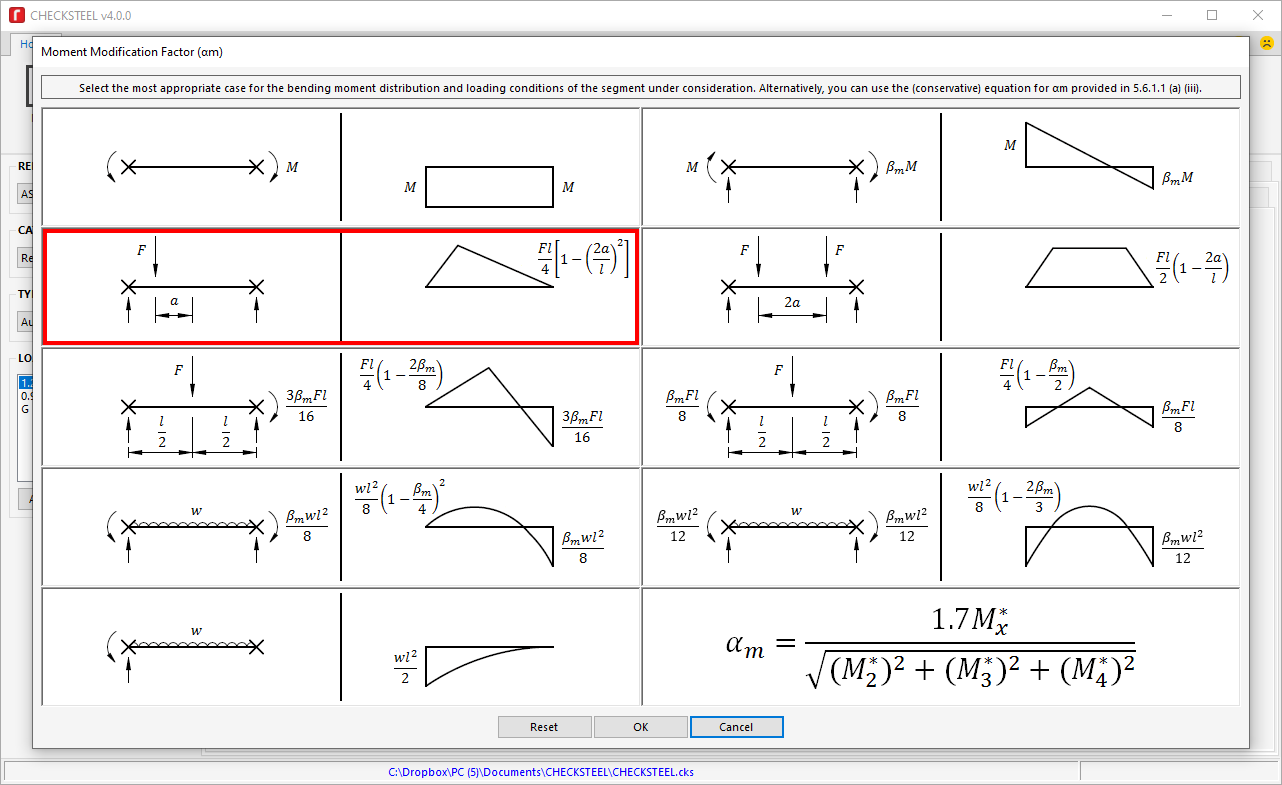

    Screenshots

    1 / 3

    Compliance

    Standards and capabilities

    Section and library tools

    • Symmetric and monosymmetric I-beams, tees, channels, bars, RHS, SHS, and CHS.
    • Hot-rolled, heavily welded, lightly welded, cold-formed, and stress-relieved section workflows.
    • Historical Australian and New Zealand section library spanning roughly 60 years of production.
    • Source-referenced BHP/AI&S, OneSteel TubeLine, OneSteel DuraGal, Smorgon DualGrade, and more.

    Supported design standards

    • AS 4100 structural steel design.
    • AS/NZS 5100.6 bridge steel design workflows.
    • NZS 3404 steel design support for New Zealand projects.
    • Supporting section property calculations to AS 4100, AS 5100.6, AS/NZS 3679.1, AS/NZS 3679.2, and AS/NZS 1163.

    Coverage

    Supported countries

    Oceania

    AustraliaNew Zealand

    Resources

    PDFs and downloads

    Sample reports and product documents for this software.

    Design report PDF
